Execute plate cuts in parallel planes

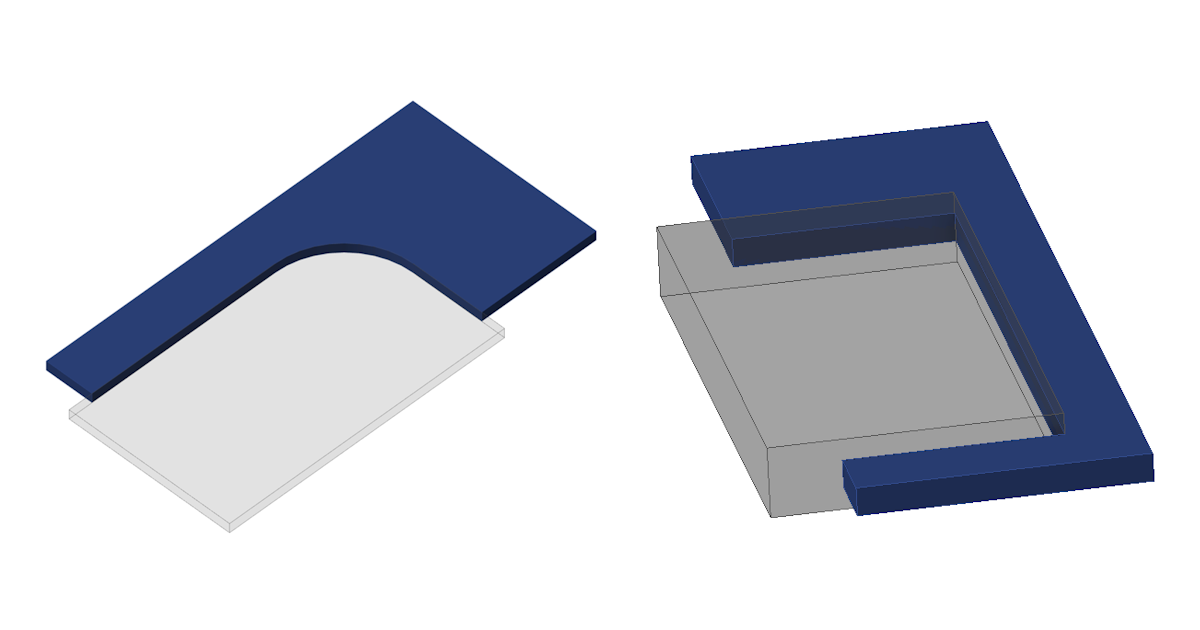

The Cut of plate operation offers the possibility to cut plates by other plates and negative volumes defined within the same plane. This is beneficial for handling general plate shapes imported from DXF files, addressing the plate cuts that could not be performed in the plate Editor.

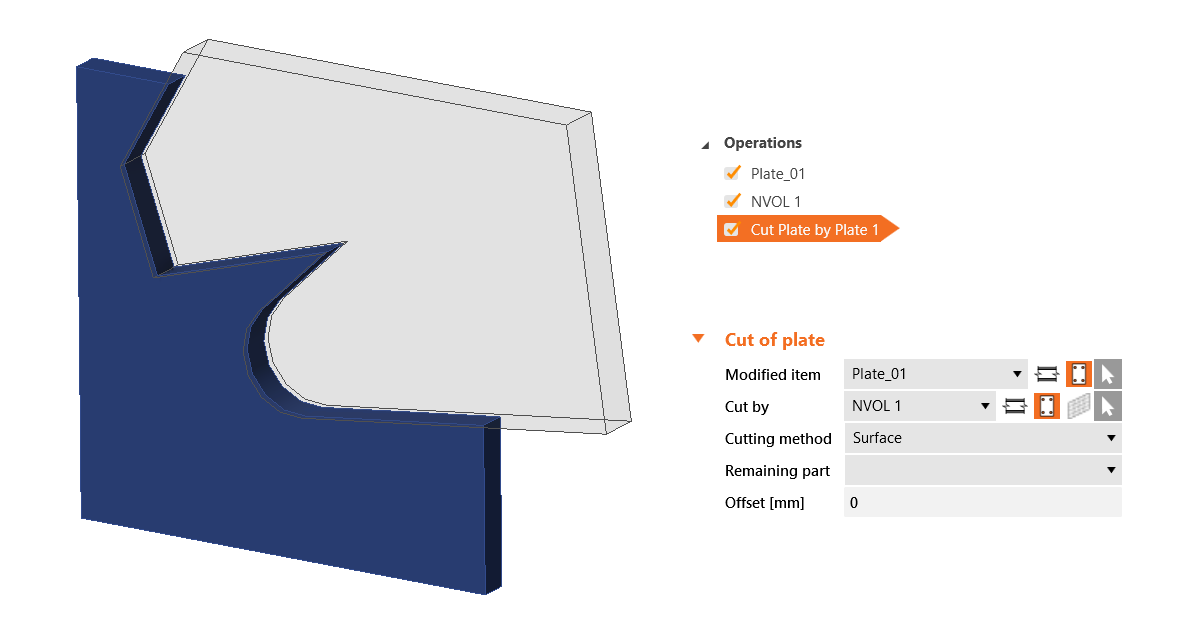

To use this feature, select the PCUT (Cut of plate) operation and choose the Surface cutting method within the parameters of picked plates or negative volumes.

See more about modeling in IDEA StatiCa Connection in the recorded webinar Get the most out of Connection modeling.

Released in IDEA StatiCa patch 23.1.1.
