Gusset plate for HSS bracing

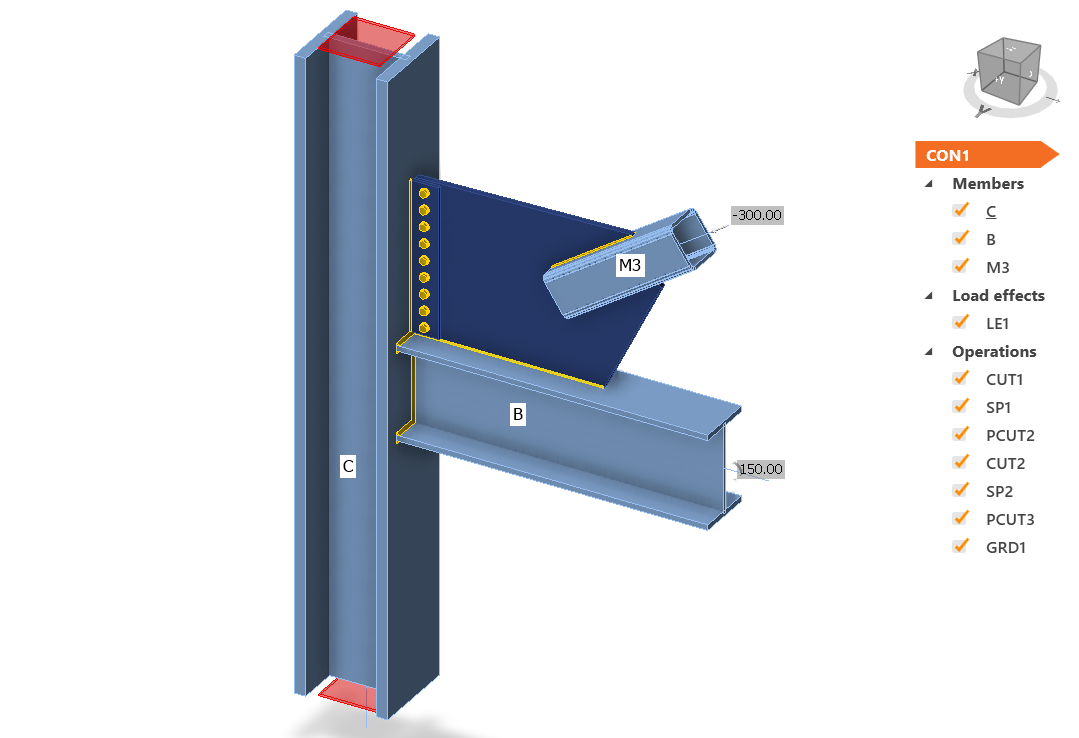

This is a beam-brace connection to a column. The gusset plate is connected through a shear tab to the column. The beam is welded to the column.
