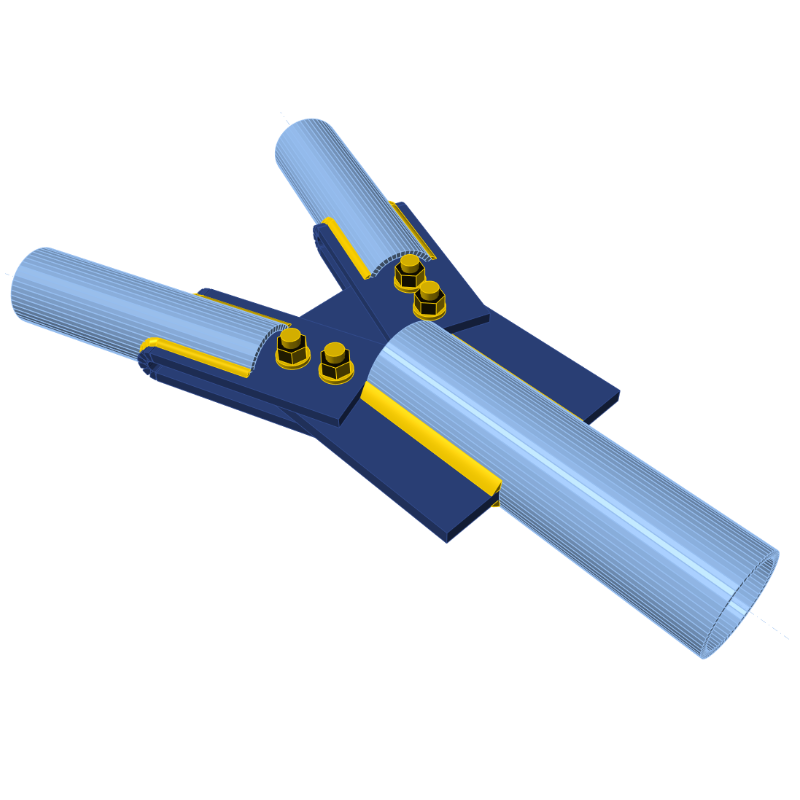

Tubes with bent plates
Truss connection of tubes with bent plates, welded and bolted together. Applicable for the connection of the horizontal stiffening of a hall or roof structure. The connection is solved in the IDEA StatiCa Connection app.
