Minta projekt

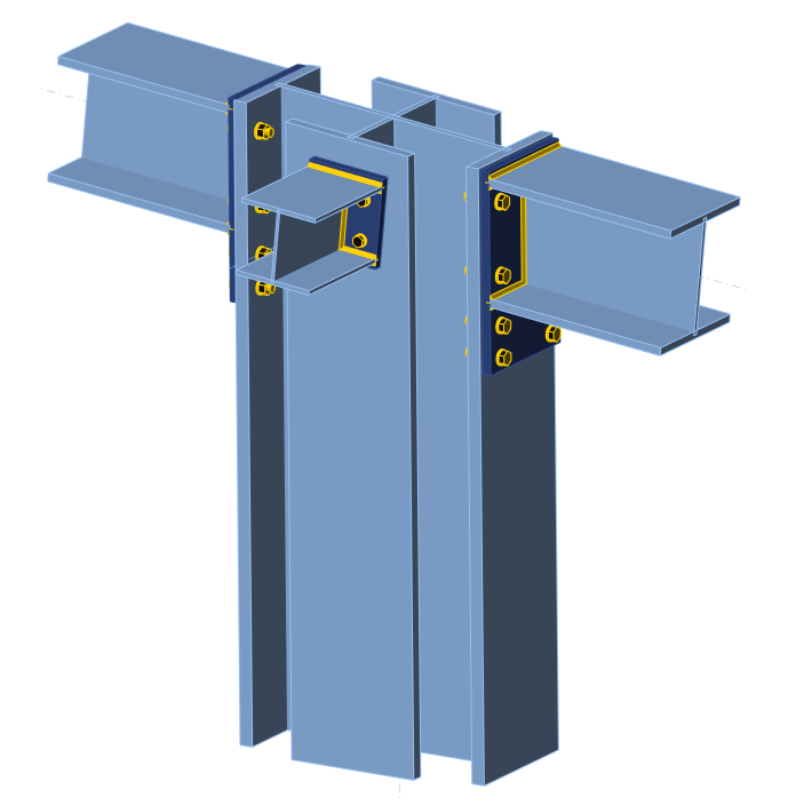

Cruciform column moment connections
Steel rolled I-beams connected to column with welded general cross-section. Bolted endplate connections are designed to be able to transfer axial and shear forces, and moments. Such a structure is typically used in areas with seismic activity. Modeled in the IDEA StatiCa Connection application.
