Chimney

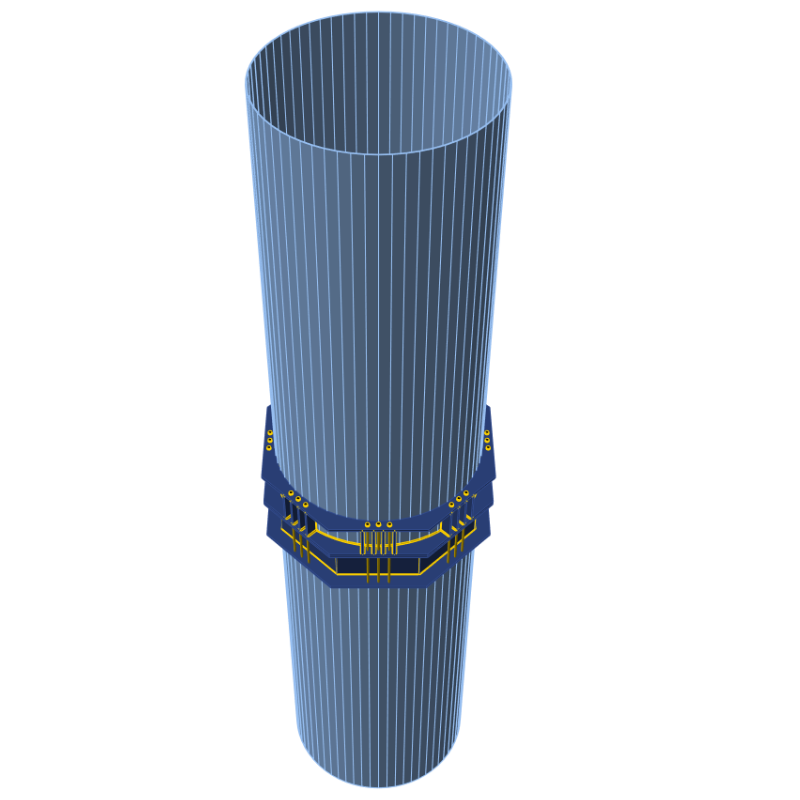

An example of a chimney connection using a circular tube cross-section with inserted stiffening member and additional stiffeners. As an end plate, an octagonal flange is used. The connection is bolted with several sets of bolt groups and analyzed in the  IDEA StatiCa Connection app.
