Multiple anchoring of single column

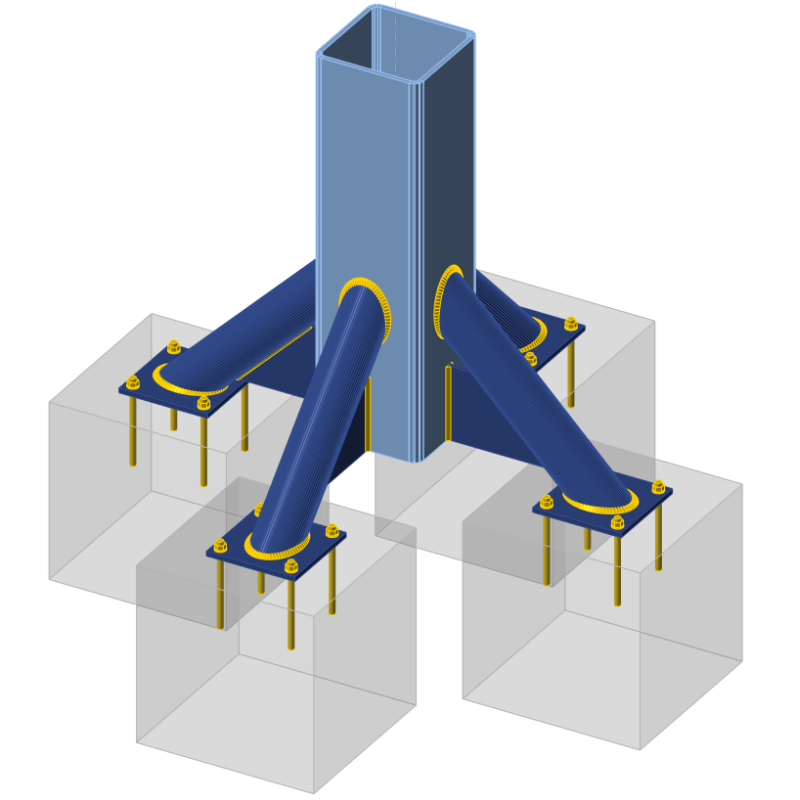

Multiple anchoring of single hollow-cored column (HSS). Four welded tubular stiffening members are connected to the column and separate concrete blocks using the baseplate connections. Stiffening plates were used to strengthen the connection so the moment could be transferred safely. Modeled and analyzed in the IDEA StatiCa Connection application.
