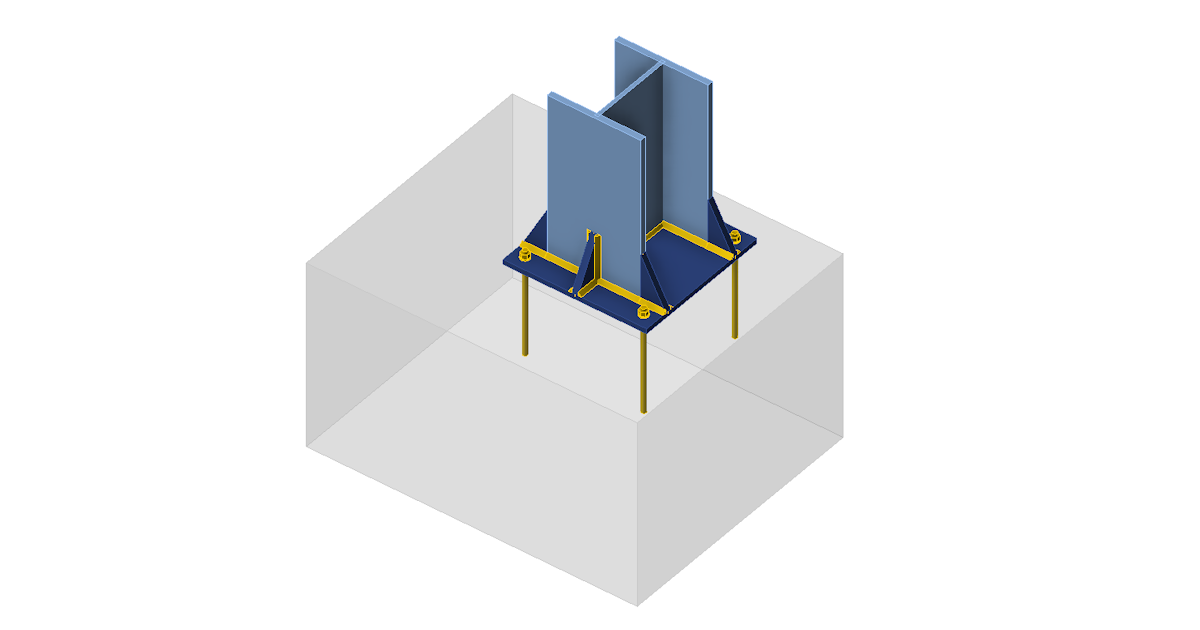

Anchoring with different offsets
You can define different offset values between the base plate of the anchoring and the edge of the concrete block. You can read more about how to define the offsets in General anchoring shapes and options.
Model created in IDEA StatiCa Connection app.
