Directly anchored beam

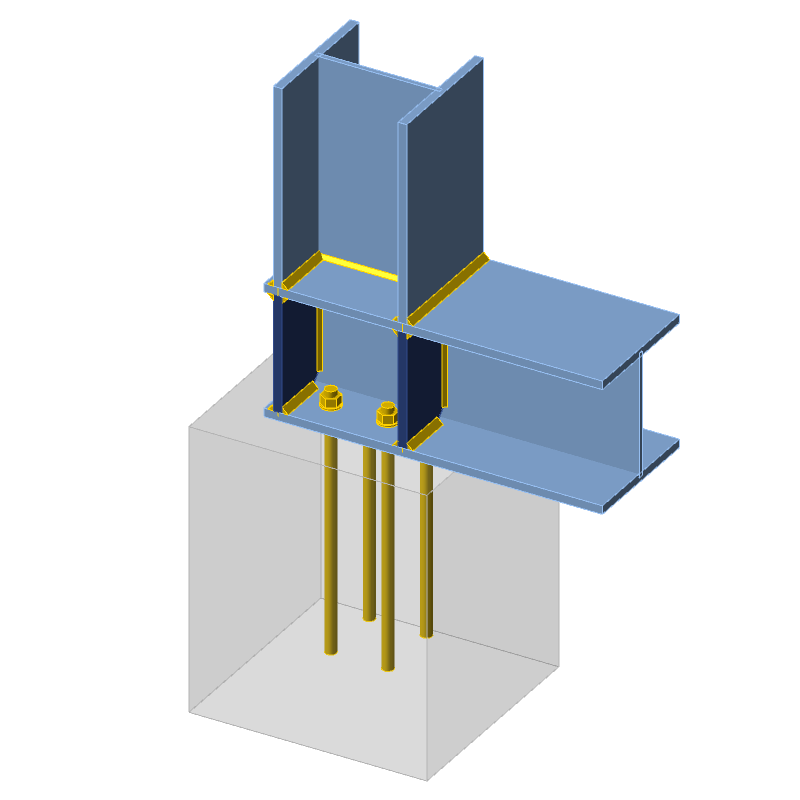

An anchoring analyzed in the IDEA StatiCa Connection app. HEB column welded to HEB beam that is anchored directly to the small concrete footing. The beam is stiffened underneath flanges of the column.
