Tubular SHS bracings with notches

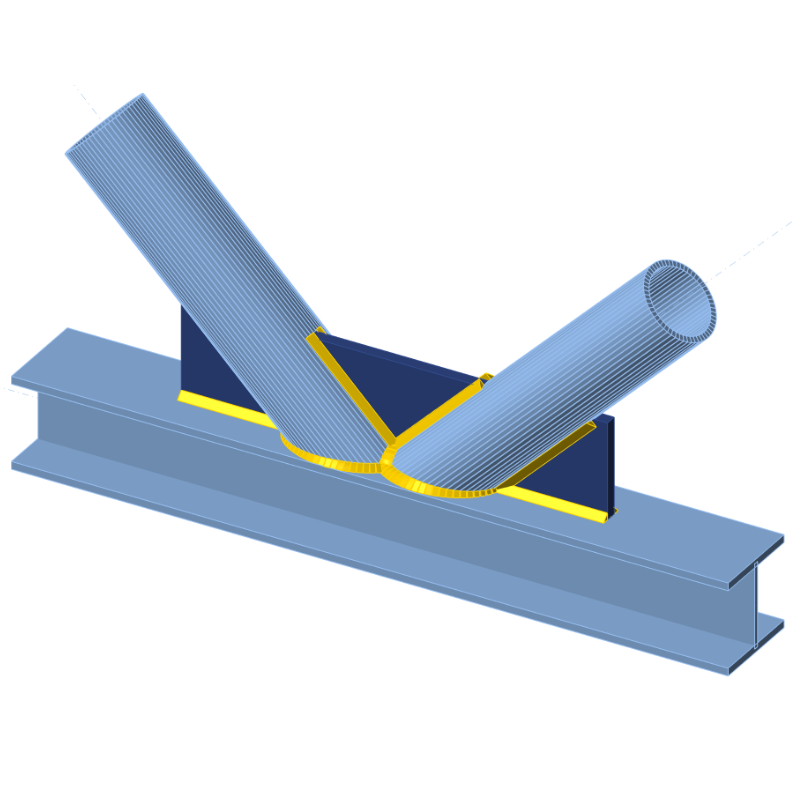

Truss connection of tubular SHS bracings with notches welded to a gusset plate connected to a rolled I-section horizontal beam. The connection could be part of the truss typically used in buildings with frames with large spans. The model was assessed in the IDEA StatiCa Connection application.
