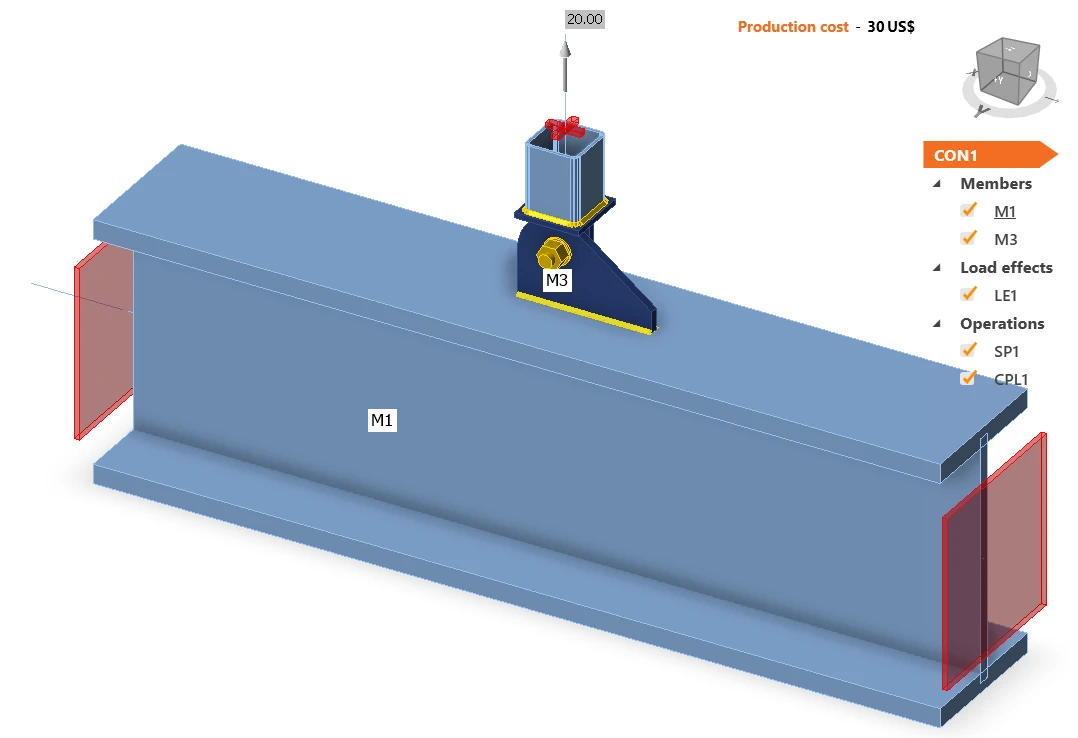

Lifting lug connection

This is a lifting lug connection design. The approach is to model the shape of the plate as needed. Then a member is modeled to apply a load and connected to the lifting lug plate. Also, another rigid member is used for the bearing element in the model.
