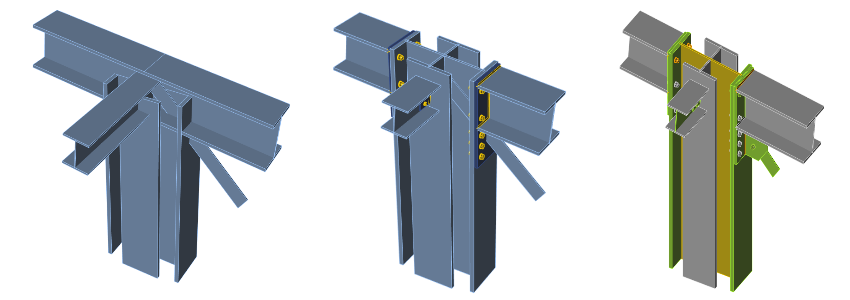

Structural design of a general 3D joint (EN)

Learn how to use IDEA StatiCa Connection to design and code-check a structural steel joint, an example is the connection of a general 3D joint.

1 New project

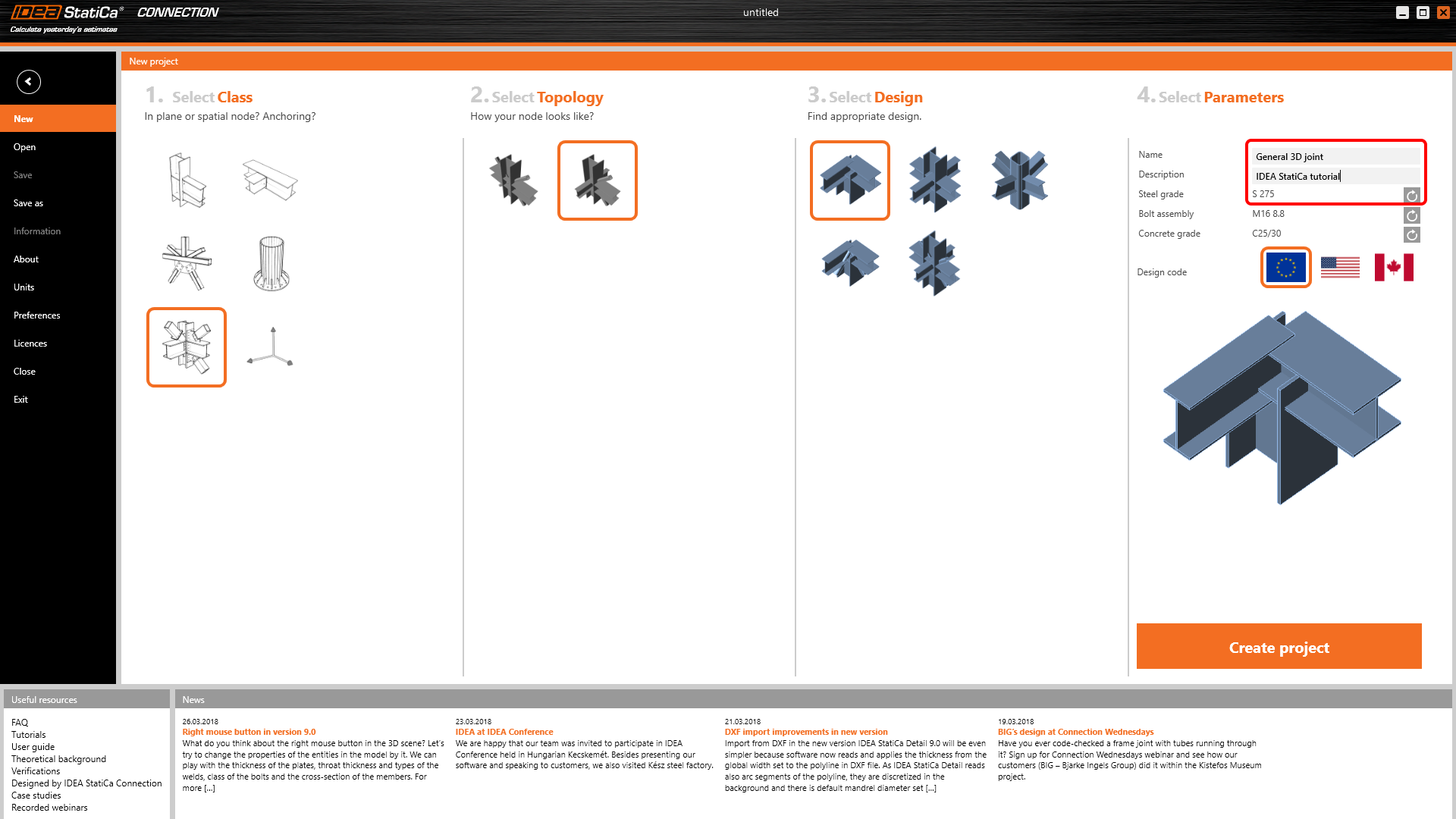

Start with launching the IDEA StatiCa Connection. Create a new project by selecting a starting template closest to the desired design, filling in the name, and choosing the design code and default material properties – S 275.

inline image in article

2 Geometry

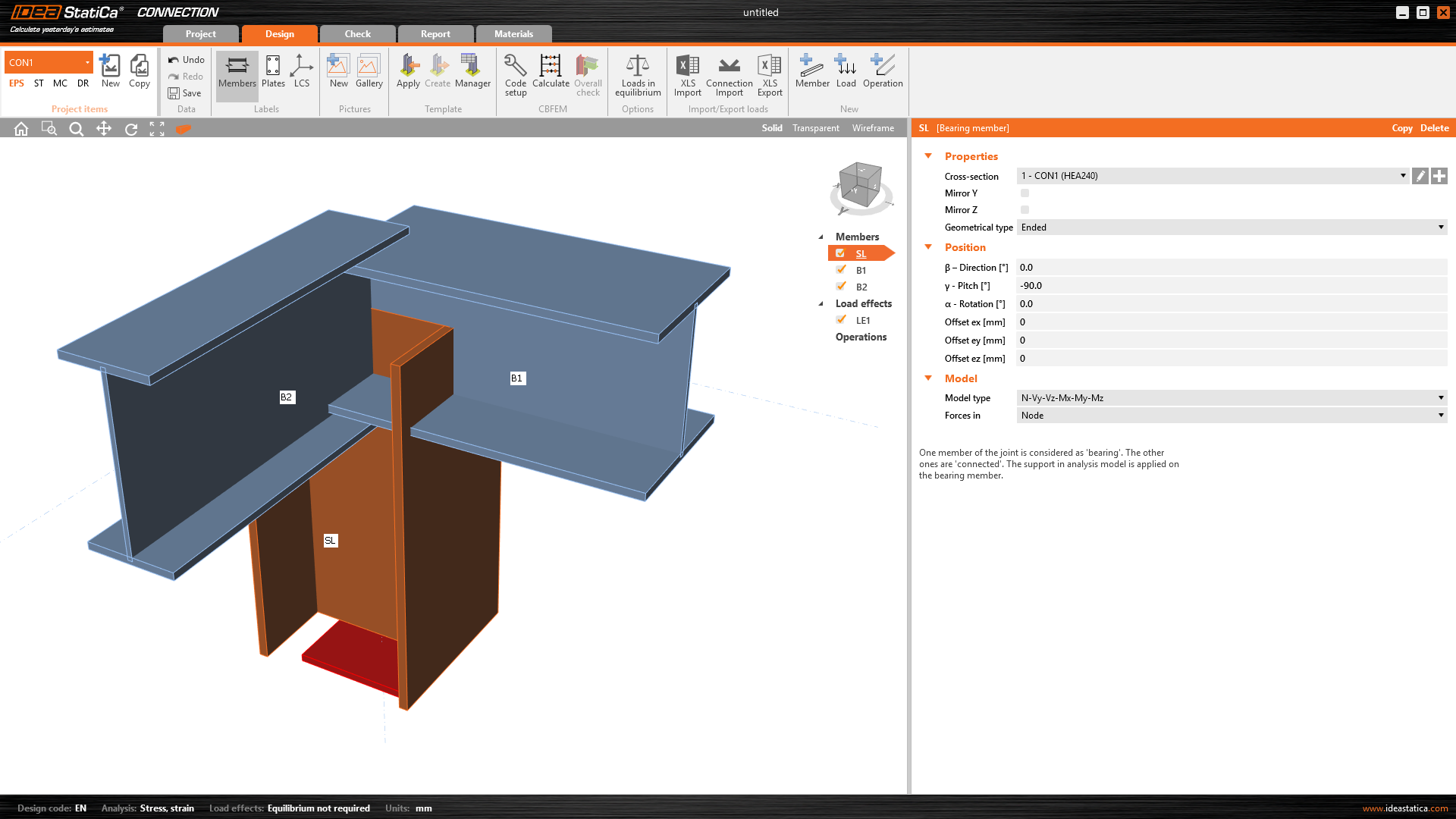

Three beams were automatically added.

inline image in article

Member SL

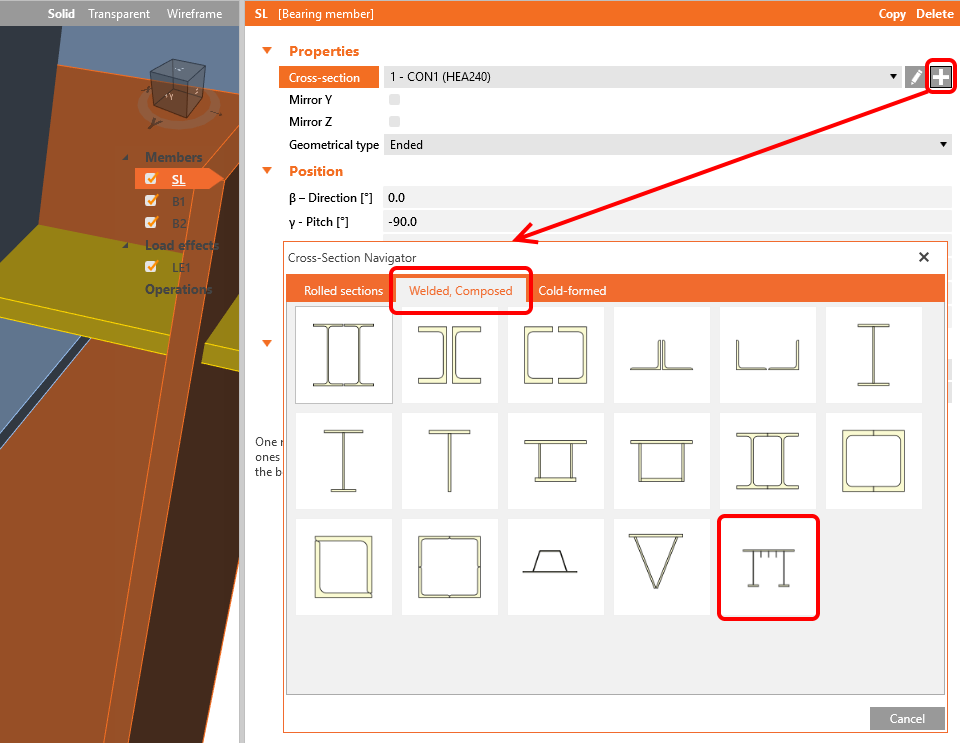

You will create a general cross-section for the column member. To do that, select Welded, Composed tab and click on General steel cross-section.

inline image in article

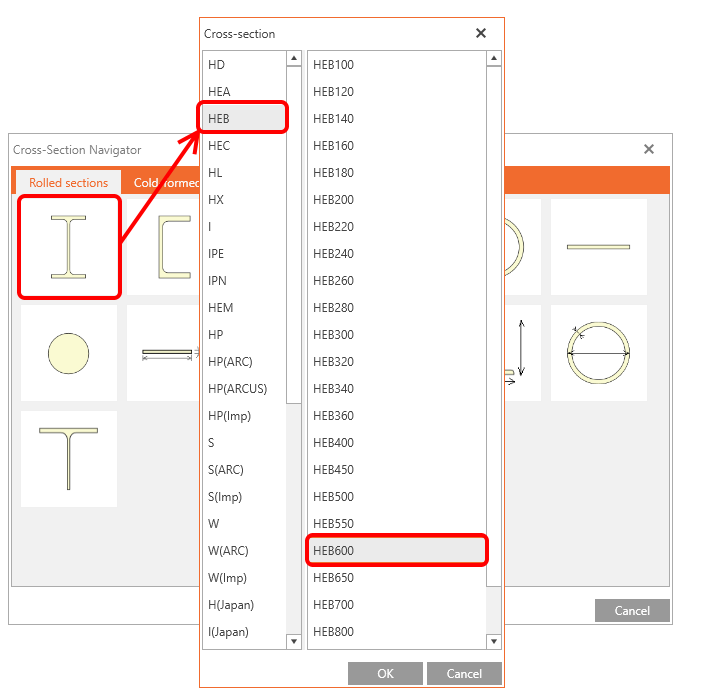

The General cross-section editor is opened, and you can start composing the cross-section by selecting the I sections in the Cross-section Navigator.

inline image in article

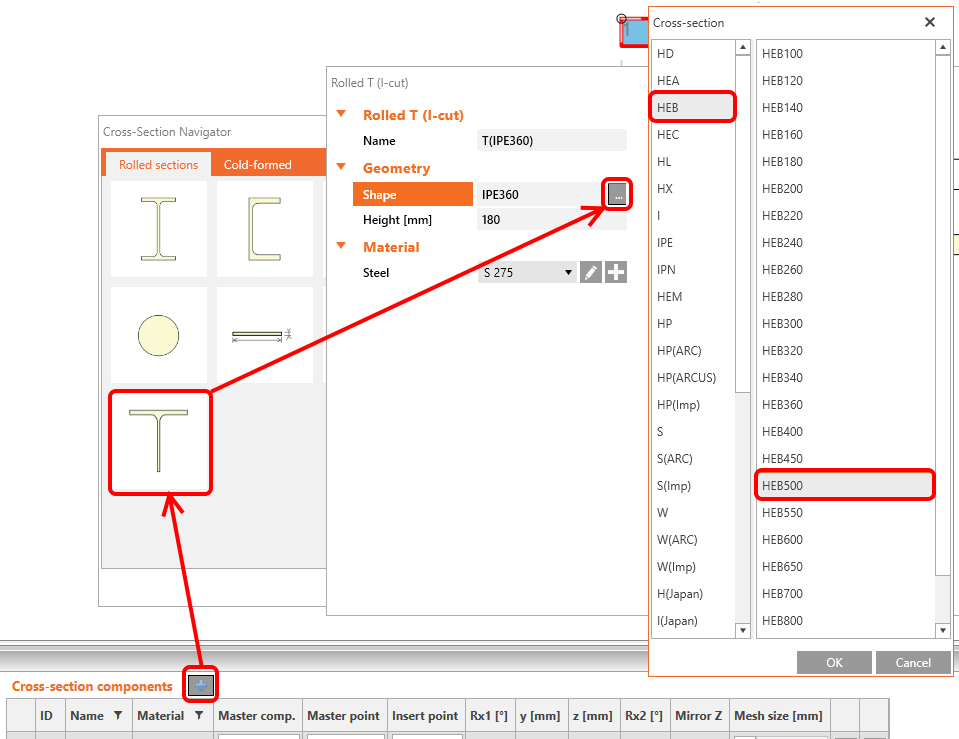

Then continue by clicking on the icon Add new entity and selecting the Sections T (I-cut). The Rolled T (I-cut) window is opened, and you can edit the shape.

inline image in article

Then make a copy of this entity by clicking the Copy icon in the upper ribbon.

inline image in article

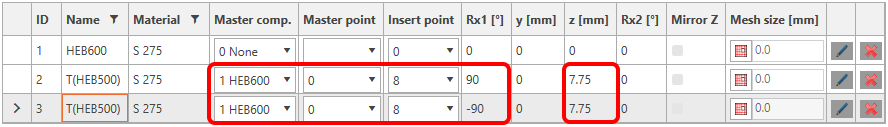

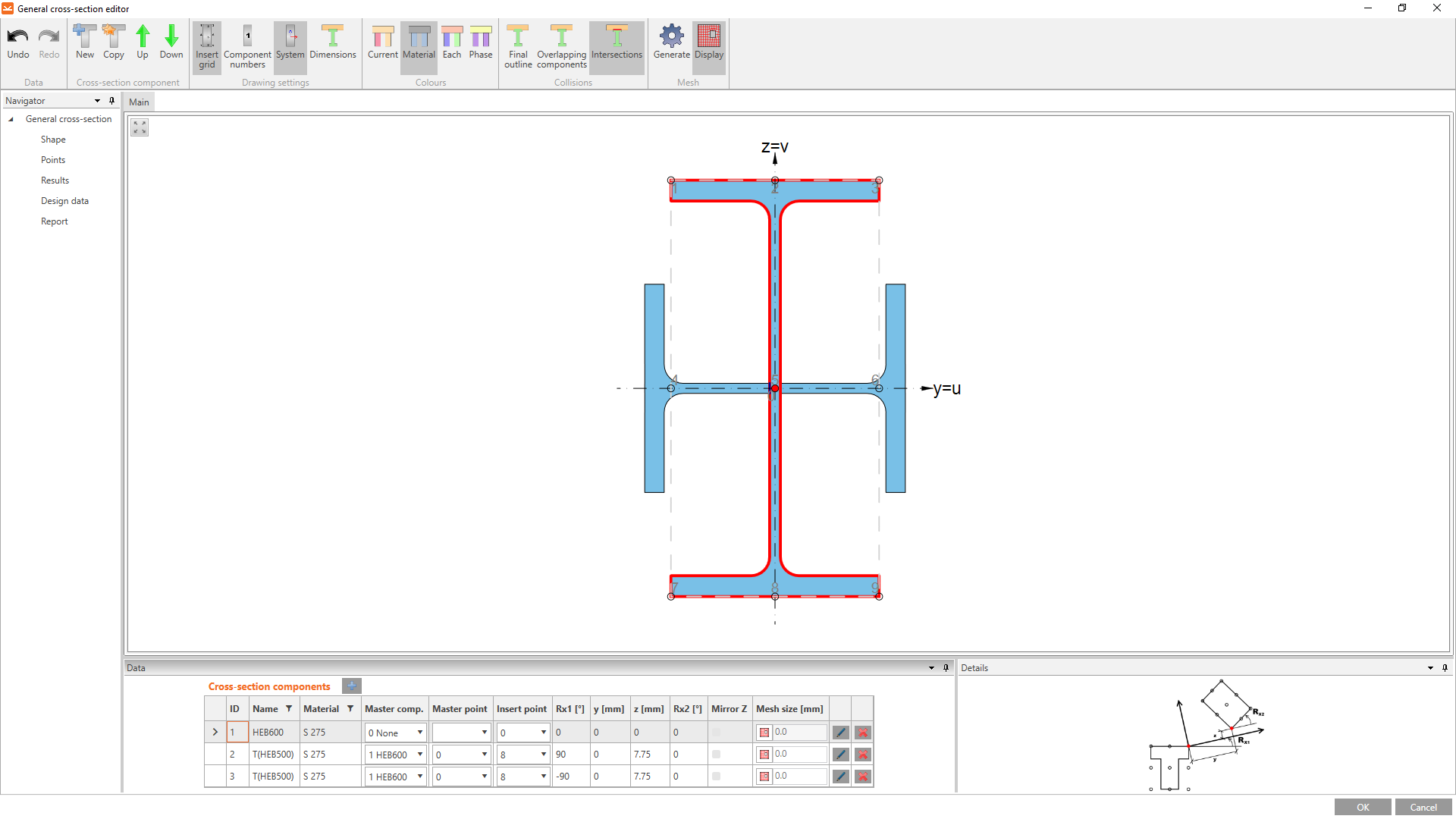

Next, move and rotate the added T-shaped entities to design the whole cross-section by editing values in the Cross-section components tab as in the figure below.

inline image in article

You have the final design of the cross-section for member SL.

inline image in article

For further information, see How to create and use custom cross-section in the IDEA StatiCa Resources website.

Member B1

Start with Right-click on the beam B1 and set the cross-section to HEB280 from the library.

You have to change the member B1 properties.

inline image in article

Member B2

Set the cross-section to HEA180 on beam B2.

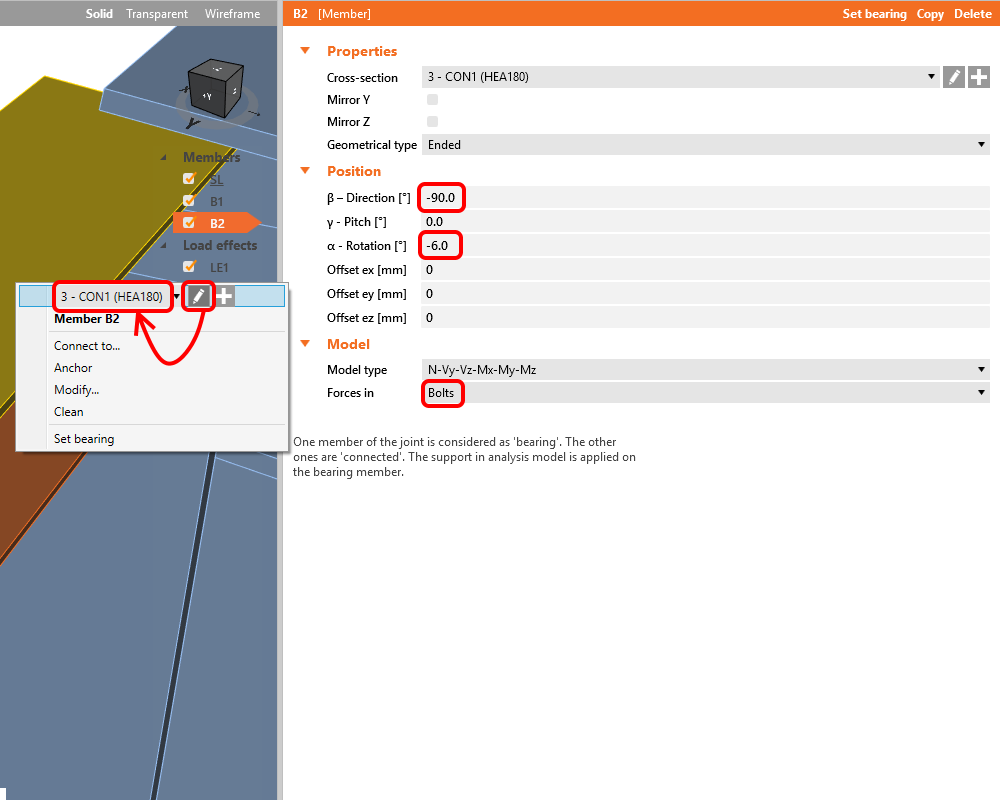

You can go on and change the member B2 properties.

inline image in article

For further information about the property "Forces in" see How to define load position in the IDEA StatiCa Resources website.

Member M4

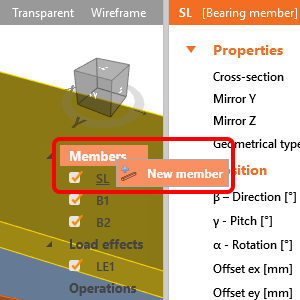

Click by the right mouse button at the Members row in the tree of entities in the 3D scene. Choose the New member command from the context menu.

inline image in article

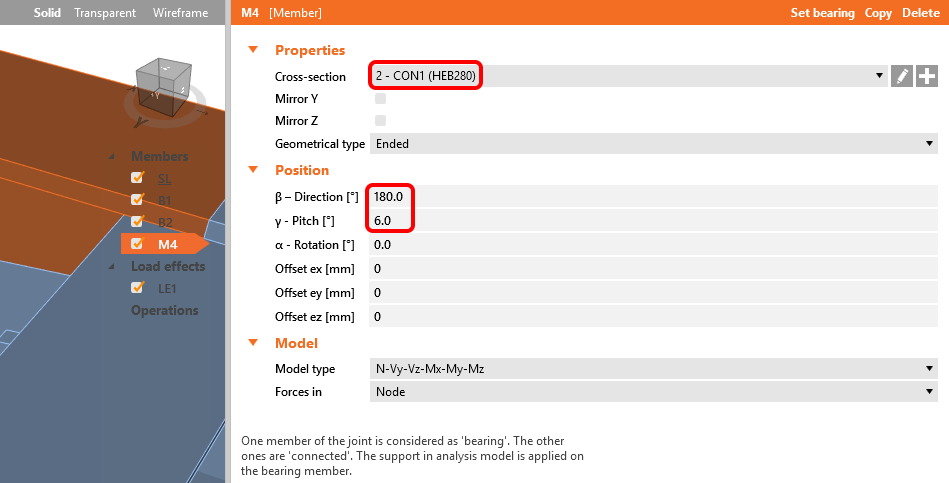

Continue and change the member M4 properties, follow the picture below.

inline image in article

Member M5

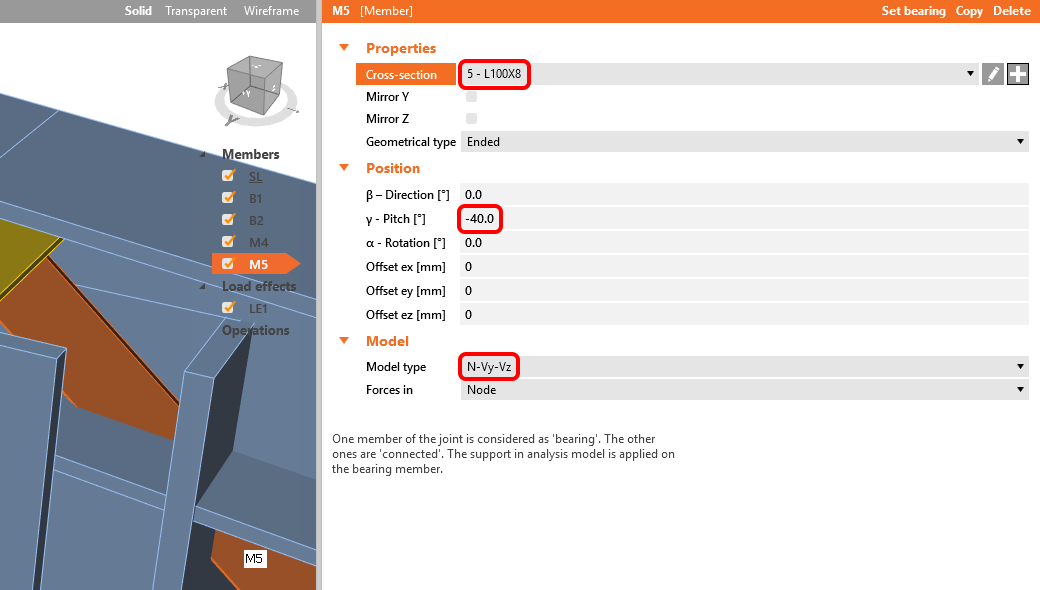

Add another member, set its cross-section to L100X8, and update properties.

inline image in article

You can check the final geometry of members.

inline image in article

3 Load effects

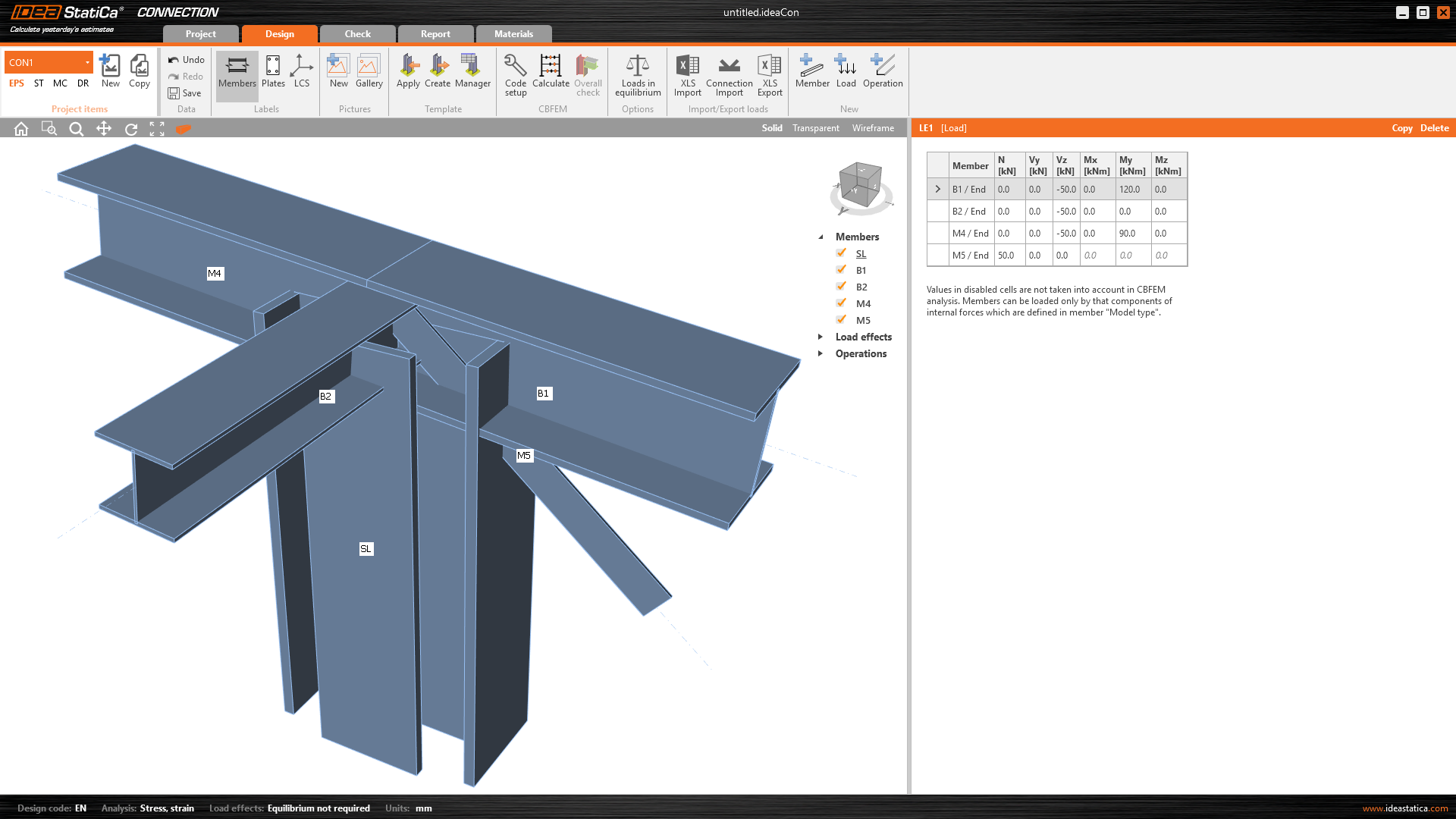

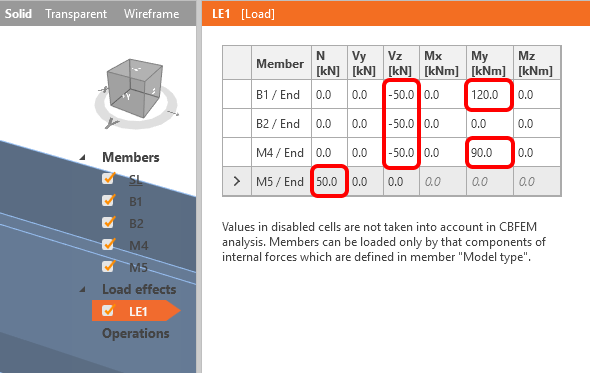

One load effect was automatically added. Input the values of internal forces into the chart. More load cases can be added.

inline image in article

4 Design

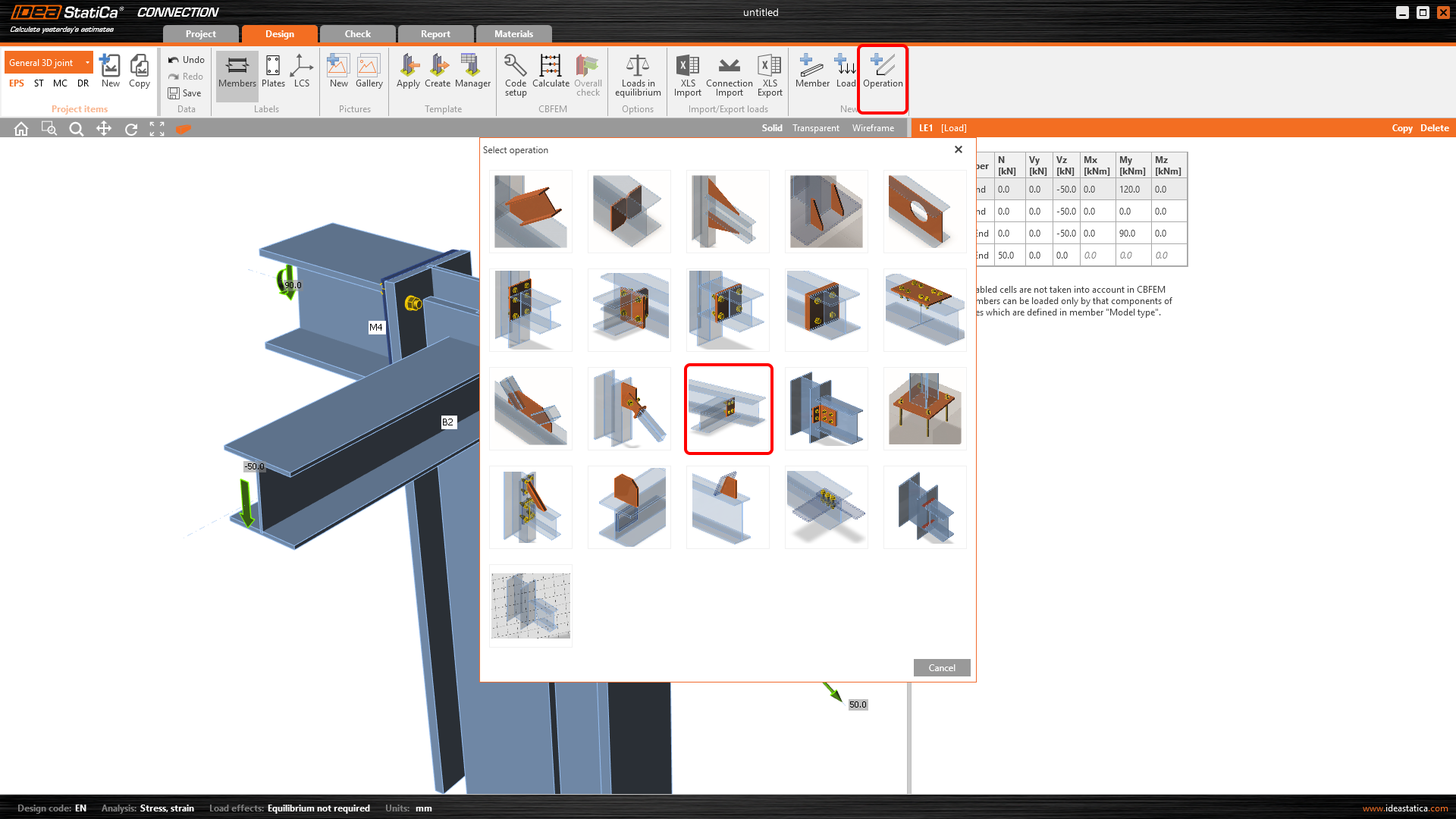

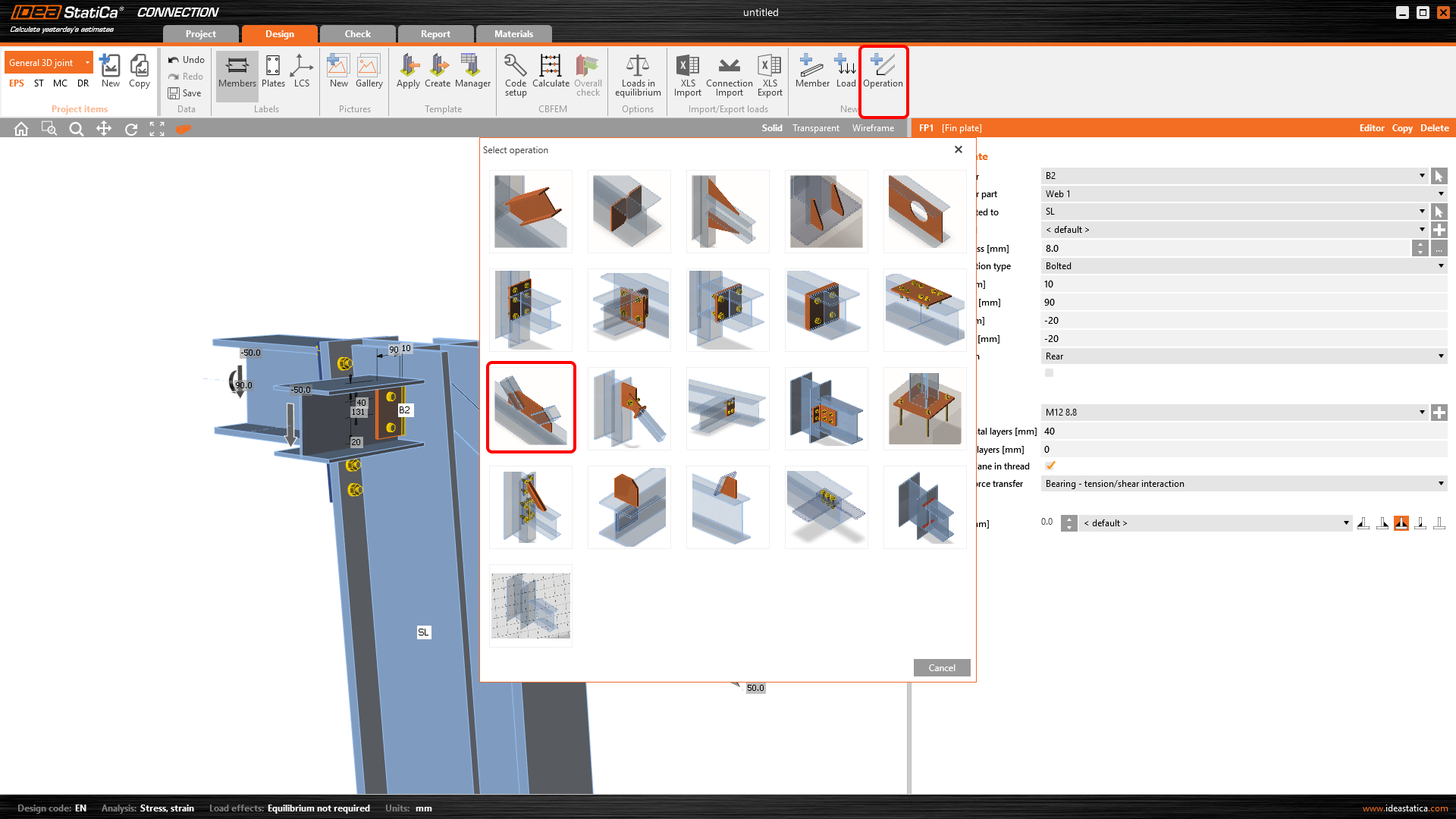

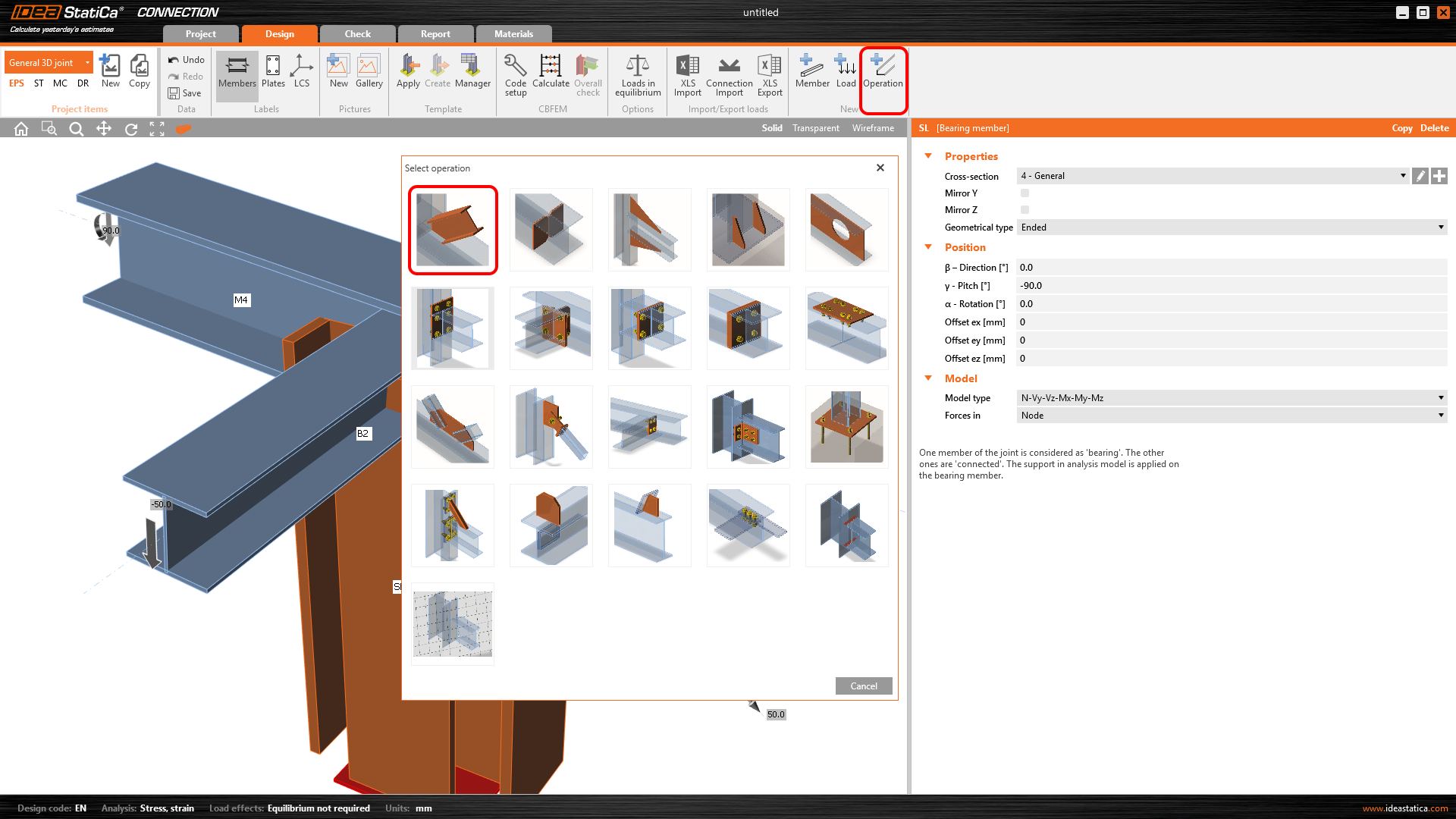

Add a new one by the command new Operation at the top ribbon. First, select the Cut of member operation to extend the column.

inline image in article

Now change the properties of the operation CUT1. Follow the picture below.

inline image in article

You can go on and add the next Manufacturing operation. Now, we select the End Plate and set desired bolts.

inline image in article

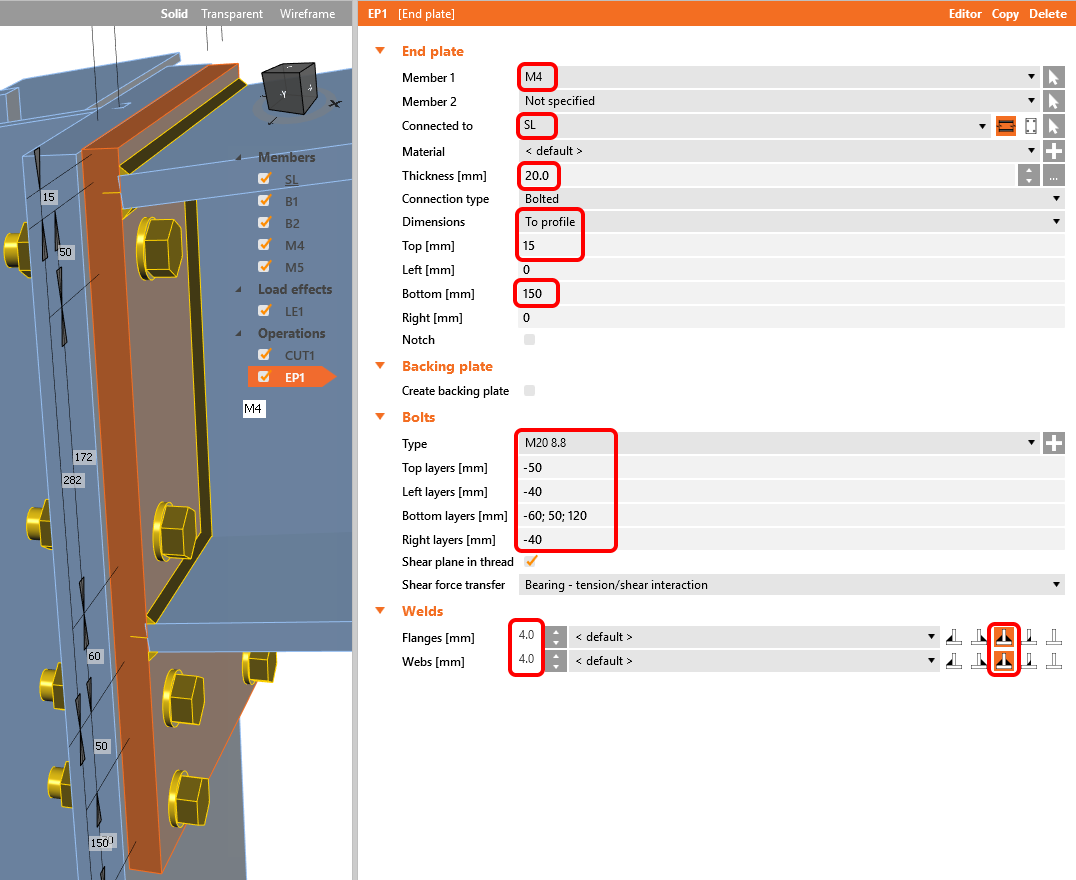

You can proceed and change the properties of the operation EP1. Follow the picture below.

inline image in article

Copy operation EP1. With the right mouse button, click on the EP1 and choose Copy.

inline image in article

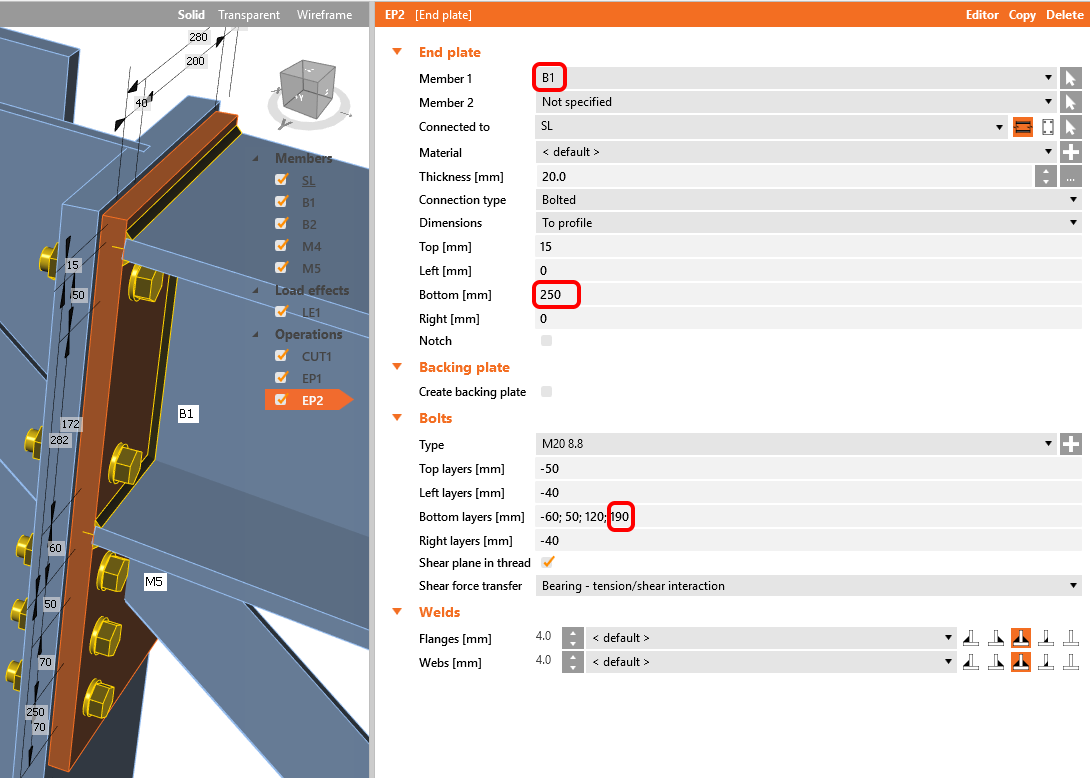

Now you have to set the correct properties of EP2.

inline image in article

You can continue and input a Fin plate.

inline image in article

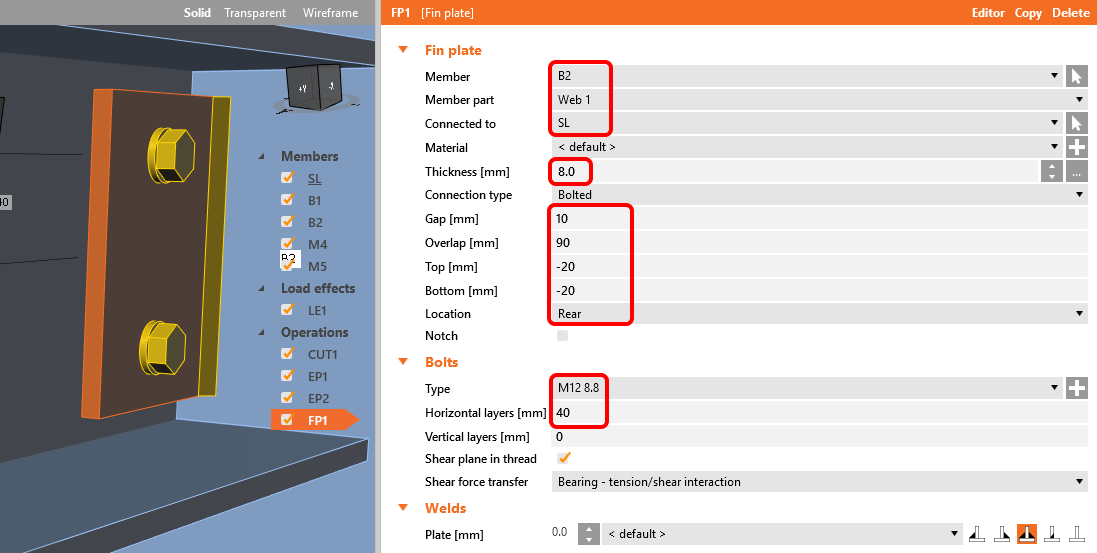

Change the properties of the operation FP1. Follow the picture below.

inline image in article

Finish the design by adding a Gusset plate operation.

inline image in article

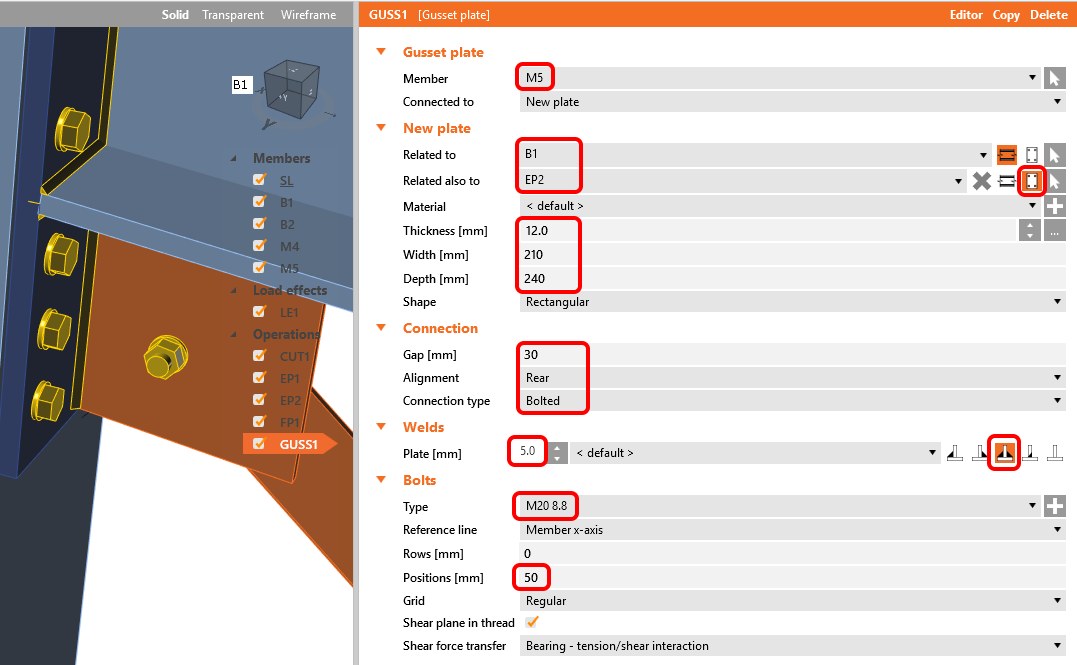

And set the parameters for GUSS1.

inline image in article

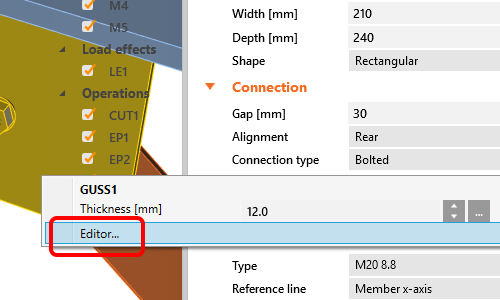

Finally, edit the gusset plate shape. With the right mouse button, click on plate GUSS1 in the 3D scene and choose Editor.

inline image in article

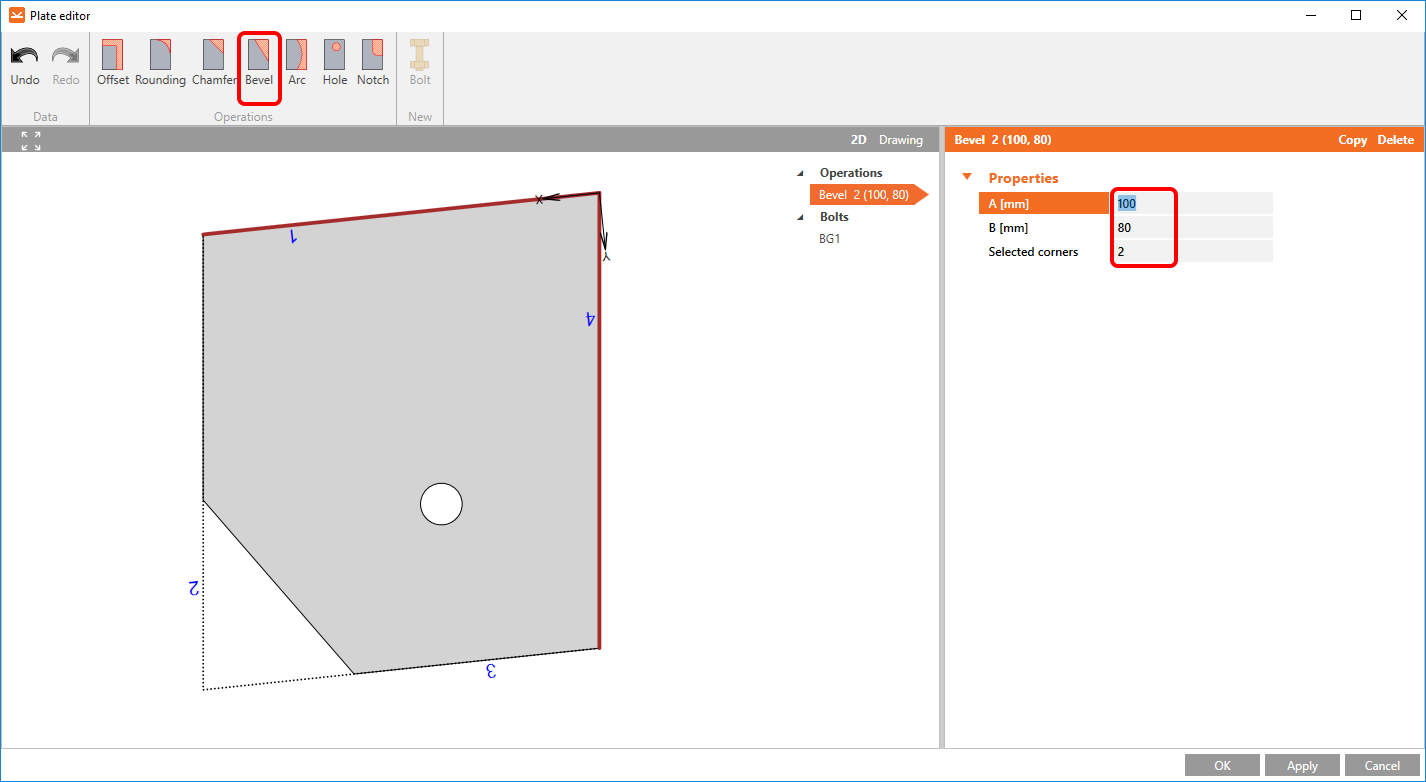

Modify the gusset plate by the input of a Bevel.

inline image in article

Let’s check the final design of the joint.

inline image in article

5 Calculation and Check

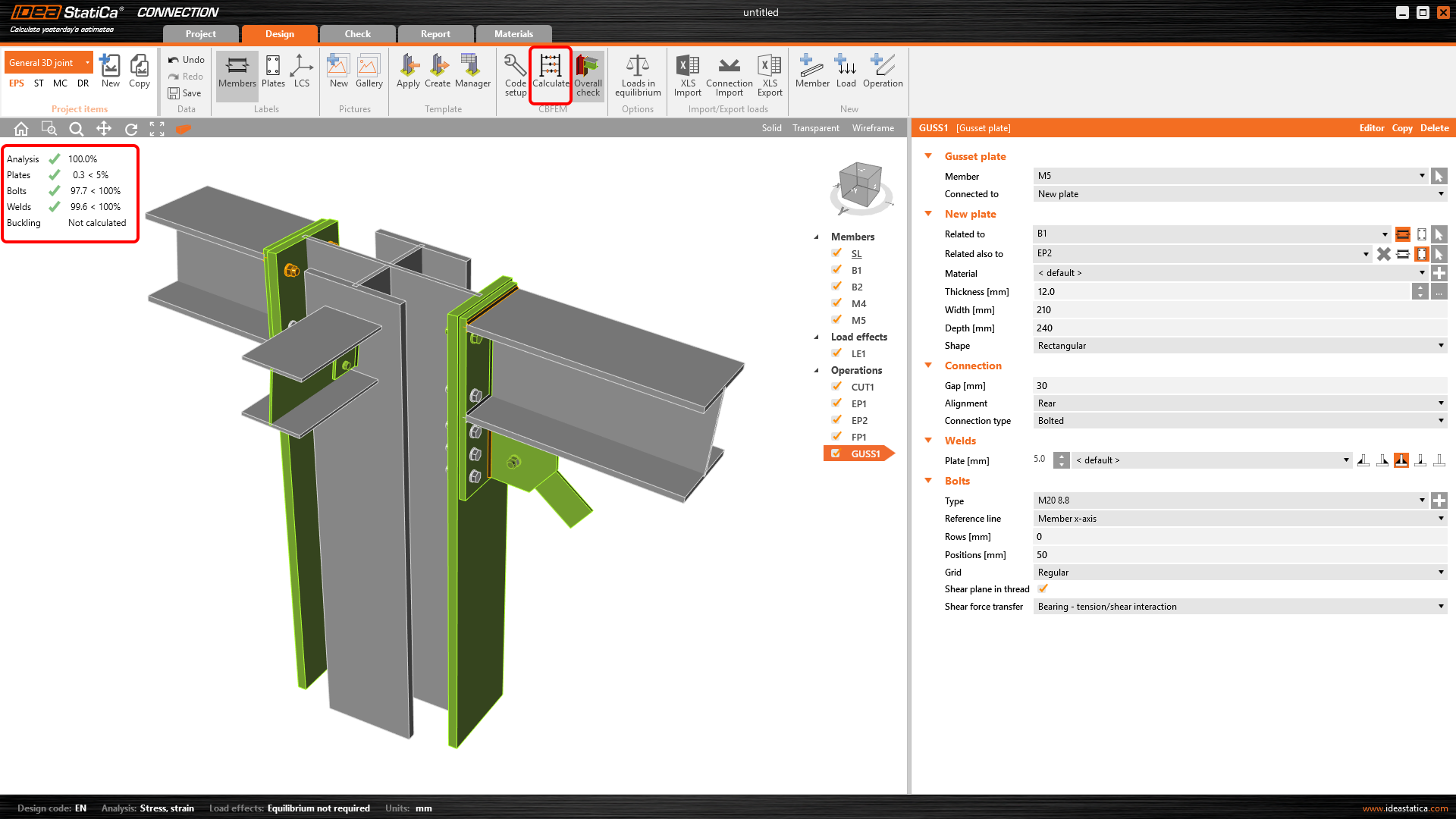

You can start the analysis based on CBFEM by clicking Calculate in the ribbon. The analysis model is automatically generated, the calculation is performed, and we can see the Overall check displayed together with basic values of check results.

inline image in article

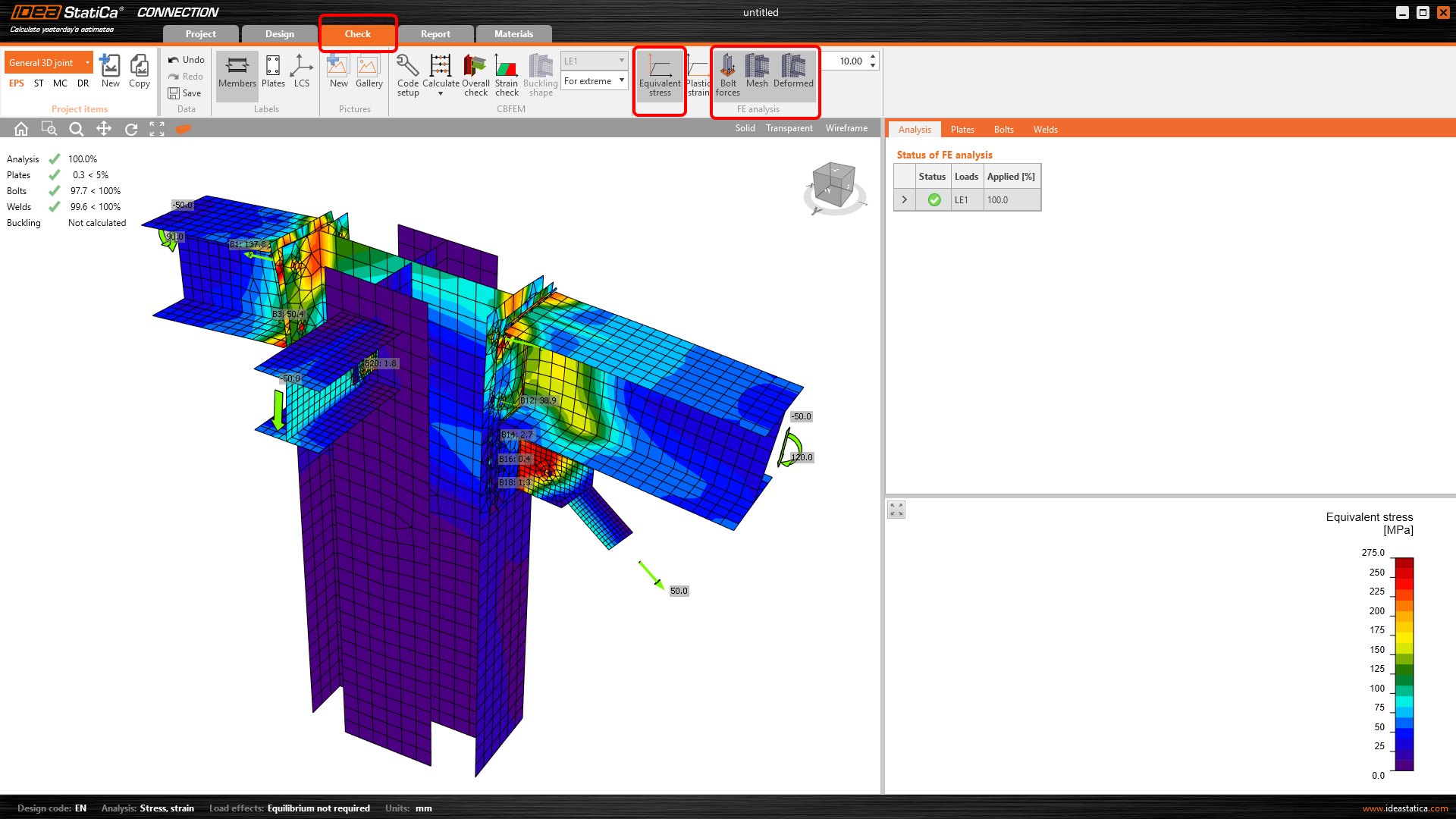

Go to the display tab Check, and activate Equivalent stress, Bolt forces, Mesh and Deformed from the ribbon to get a full picture of what is happening in the joint.

inline image in article

6 Report

At last, go to the tab Report. IDEA StatiCa offers a fully customizable report to print out or save in an editable format.

inline image in article

You have designed, optimized, and code-checked a General 3D joint according to Eurocode.
