Anchoring with shear lug

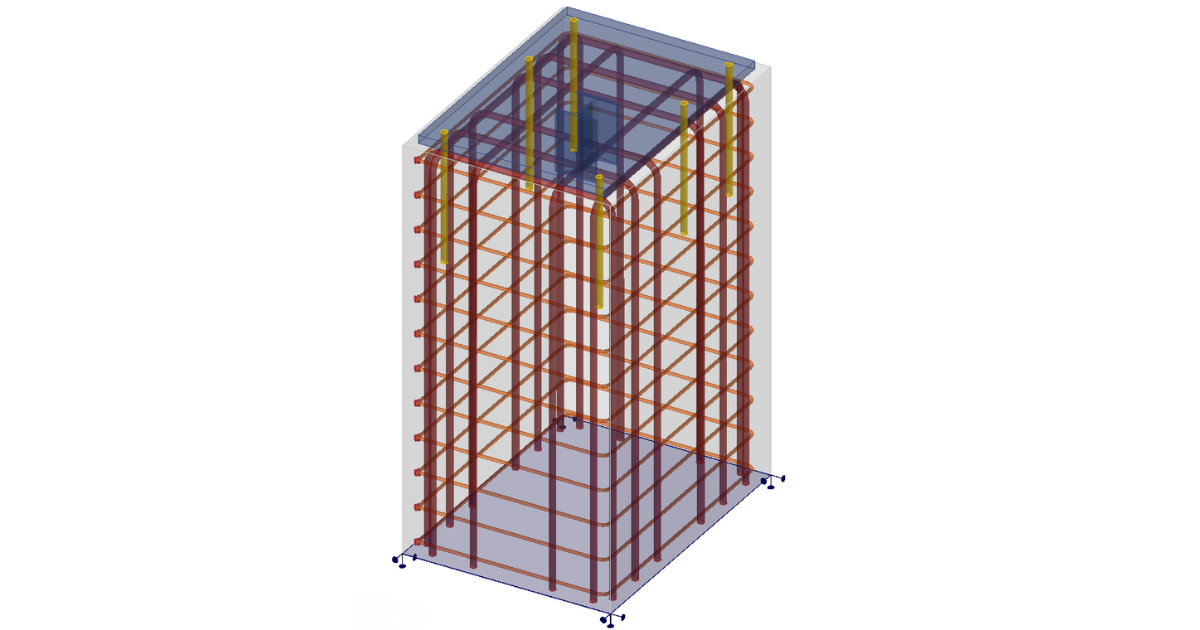

This is an example of anchoring with a shear lug, a typical case of anchoring where a significant shear force appears. In IDEA StatiCa Detail 3D, it is possible to design a reinforced concrete block where the shear is transferred by the shear lug. To check the shear lug itself, it is necessary to use the IDEA StatiCa Connection.
