Complete SLS combinations in Detail

Concrete

v24.1

Detail 2D

EN (Eurocode)

This article is also available in:

The current method for code-checking deflection and crack width aligns with the principles outlined in the General Eurocode for reinforced concrete structures. However, national annexes may impose different requirements compared to the General Eurocode.

Therefore, the "Frequent" SLS combination type exists together with the other options for customizing checks and, consequently, the display of results. This allows the calculation to be tailored precisely according to the rules in national annexes and, depending on the calculated elements, even for specific cases of prestressed structures. Everyone now has the opportunity to fully utilize SLS code-checks in IDEA StatiCa Detail.

All combinations that may be needed

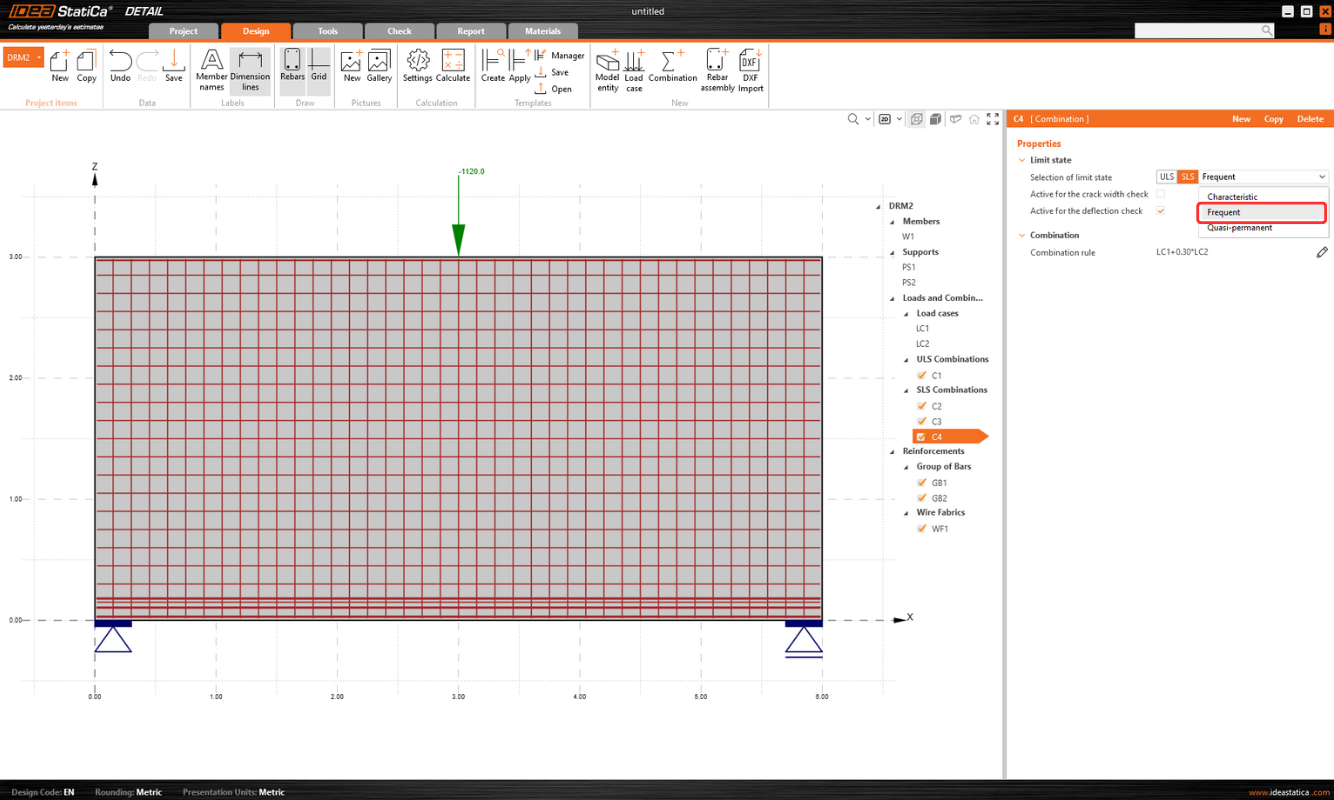

As already mentioned, the Frequent combination provides a set of combinations for SLS alongside the Characteristic and Quasi-permanent combinations. Each combination has its own significance and is used for a specific check.

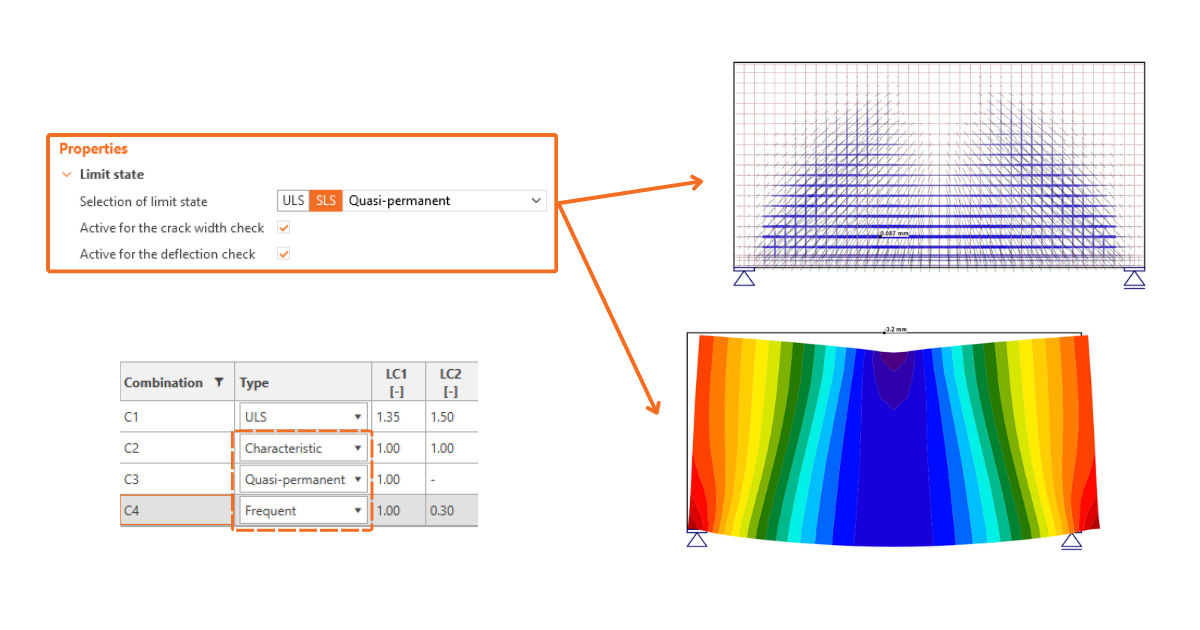

Default settings for the combination:

The Quasi-permanent combination is used for crack width check
The Frequent combination is used for crack width check
The Characteristic combination is active for deflection check

Customizing checks without limitations

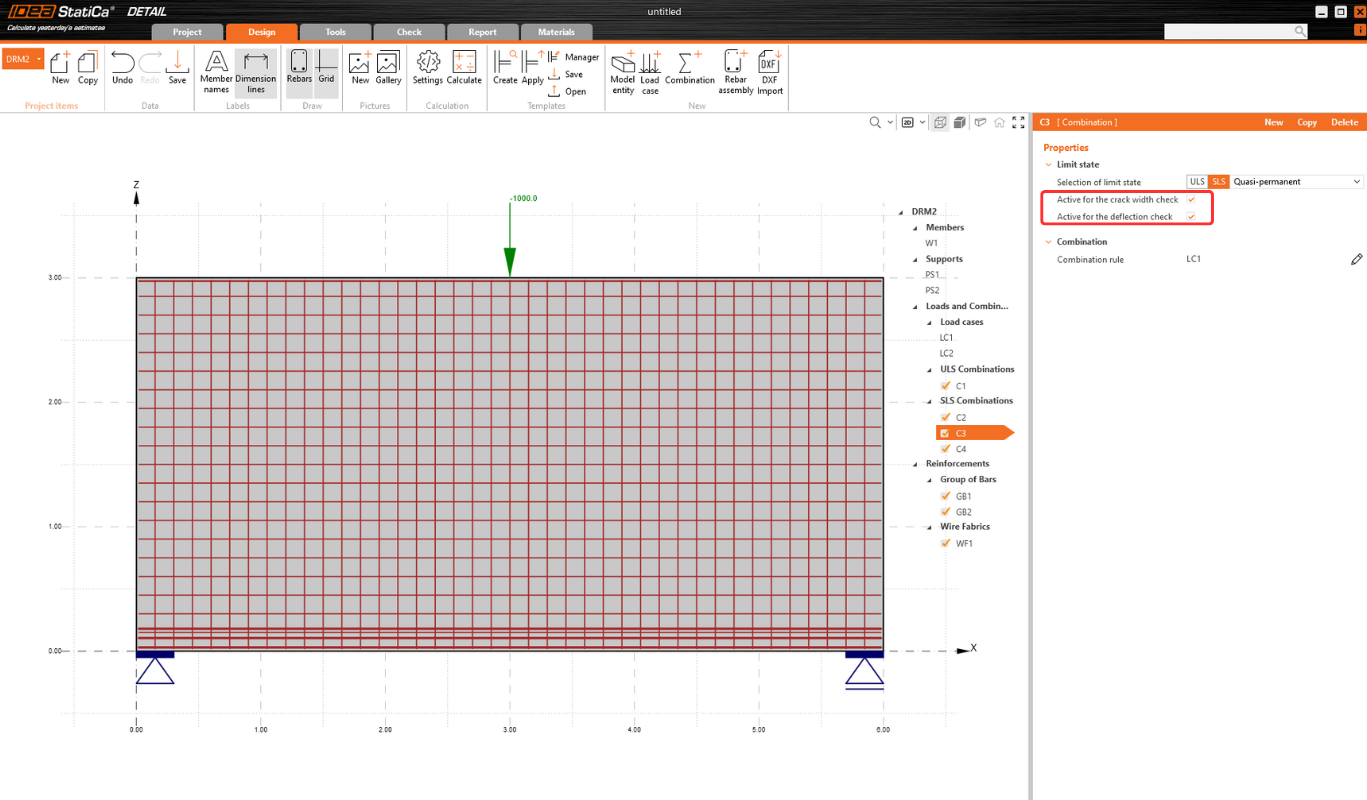

The checkboxes allow users to select any SLS combination for the deflection and crack width check. Users can specify which combination will be used for the deflection and/or crack width check by selecting the checkboxes in the Property grid.

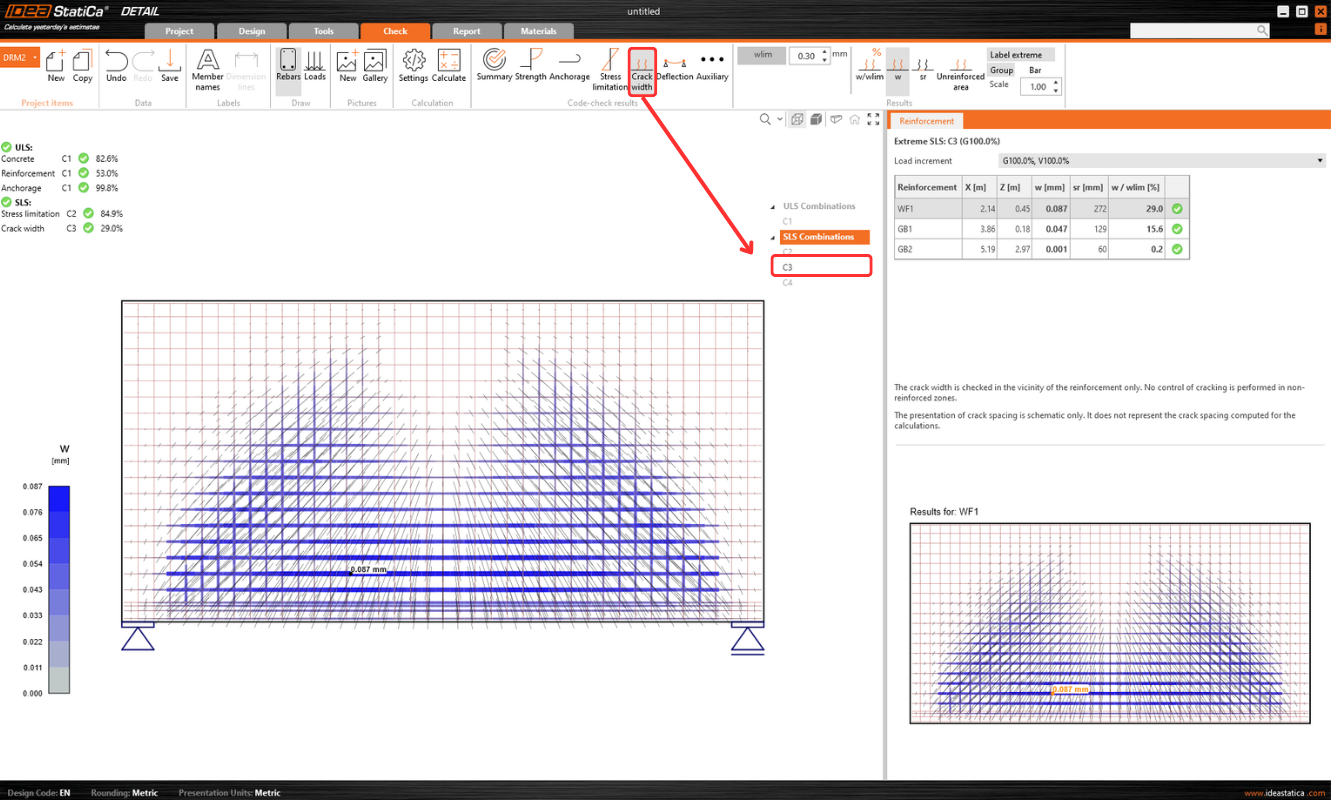

This behavior is considered for both the calculation itself and the presentation of results in the Check tab. When displaying results for the crack width check, only combinations marked with the active property "Use for the Crack Width Check" will be visible in the entity tree. The same principle applies to the deflection check.
